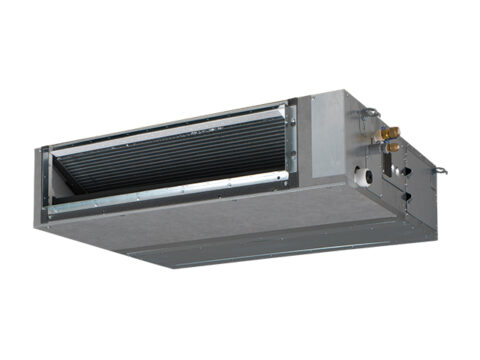

Ducted Concealed Units

Slimmest yet most powerful medium static pressure unit on the market

This product is not available for sale online.


SKU: FXSQ-A Category:


‘- Slimmest unit in the market, only 245mm height for all sizes; up to 4.6 TR.
– Discretely concealed in the wall: only the suction and discharge grilles are visible.
– Quiet operation: down to 25dBA sound pressure level.
– Up to 150 Pa External Static Pressure (ESP) for all sizes.
– Possibility to change ESP via wired remote control allows optimization of the supply air volume.
– Built-in drain pump is equipped within the unit as standard.
– Reduced energy consumption thanks to specially developed DC fan motor and drain pump.
– Flexible installation: air suction direction can be altered from rear to bottom suction and choice between free use and connection to optional suction grilles.
– Useful features such as Self-diagnosis and Auto-Restart functions.
