In the context of Heating, Ventilation, and Air Conditioning (HVAC) systems, a hot water system is a method of providing heating to a building or space using hot water as the heat transfer medium. This is a common alternative to systems that use air as the heat transfer medium, and it’s often used for both residential and commercial heating applications.

Here are the basic components and functions of a hot water system in HVAC:

1- Boiler: The boiler is a central component of a hot water heating system. It heats water to a specified temperature and then pumps it throughout the building or space to provide warmth.

2- Piping System: A network of pipes carries the hot water from the boiler to various heating devices, such as radiators or baseboard heaters, located throughout the building.

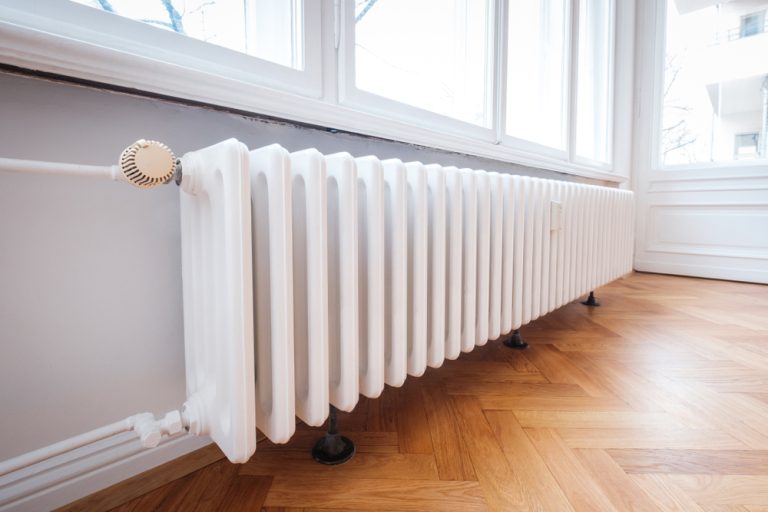

3- Radiators or Baseboard Heaters: These are heat exchange devices that release heat into the air in the rooms or spaces they serve. Radiators are typically larger and can be placed against walls, while baseboard heaters are long, narrow units installed along the baseboards of walls.

4- Control System: A control system regulates the temperature of the hot water and the distribution of heat to maintain a comfortable indoor temperature. Thermostats, valves, and pumps are components of the control system.

5- Expansion Tank: Because water expands when heated, an expansion tank is often included in the system to accommodate this expansion and prevent excessive pressure.

Hot water systems in HVAC have several advantages, including:

1- Even Heating: Hot water systems provide a more even and consistent distribution of heat compared to some forced-air systems.

2- Zoning Capability: Hot water systems can be easily zoned, allowing different areas or rooms to be heated independently, which can contribute to energy efficiency.

3- Versatility: Hot water systems can be integrated with various heating devices, such as radiators, underfloor heating, or fan coil units.

4- Energy Efficiency: When paired with high-efficiency boilers and proper insulation, hot water systems can be energy-efficient.

It’s important to note that the specific components and design of a hot water system can vary based on the size and requirements of the building or space it serves.
